TYPE: P-259/8

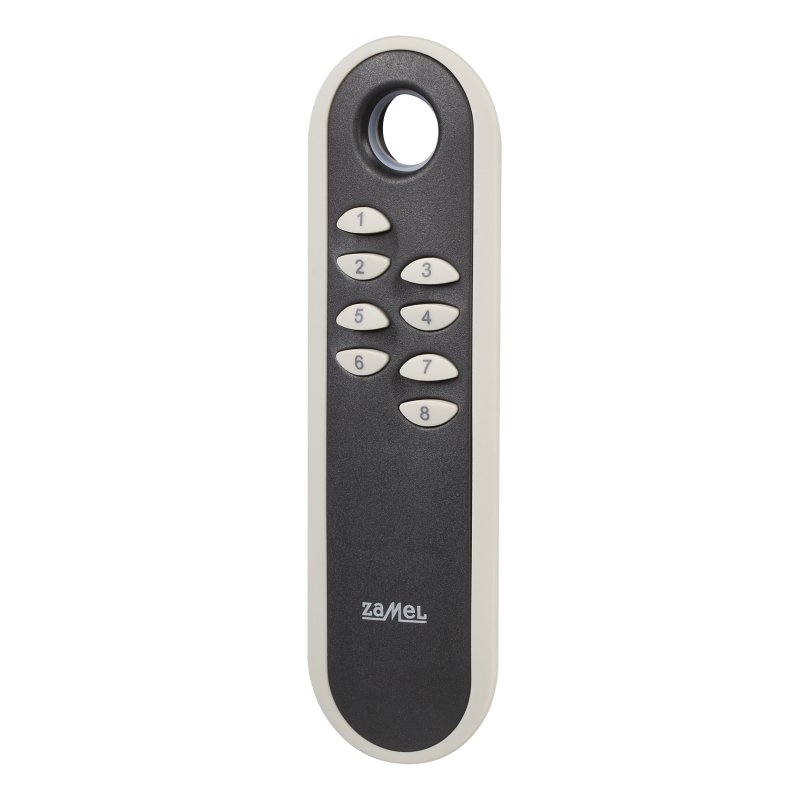

REMOTE CONTROL 8 BUTTONS TYPE: P-259/8
Controls all Y-Series devices, radio switches RWS-211 and RWS-211 / N, WSR-NT, WSR-PT, SR-PT, BSR-207 Wireless Controller, Retransmitter RT-219. Visual indication of remote control and battery status; A magnet is included in the remote control enclosure to allow the remote control to attach the remote control to the metal surface.
Comments
* The stated range of action concerns open space, ie ideal conditions, without obstacles. If there are obstacles between the receiver and the transmitter, reduce the range of wood and gypsum respectively by 5 to 20%, bricks from 20 to 40%, reinforced concrete from 40 to 80%. With metal obstacles, the use of radio systems is not recommended because of the limited range of operation. There are also overhead power lines and high power underground power lines and GSM network transmitters located close to the equipment.
Technical data
| Colour | Czarny |
| Signal transmission | Sterowanie radiowe |
| Number of channels | 8 |
| Material | Tworzywo sztuczne |
| Type of surface | Matowy |
| Power on the remote control | 12 V |
| Battery type | MN21 or MN23A |
| Number of batteries | 2 st |
| Protection degree of Remote controller | IP20 |
| Operating range | 450 m |
| Number of channels | 8 |
| Protection class | III |
| Temperature range of the remote control | 0-35 °C |
| Frequency of operation | 433,000 MHz |
| Dimensions of the remote control | 152 x 43 x 17,5 mm |
Commercial data
| Dimensions in packaging | 83 x 200 x 20 mm |
| Gross weight | 0,068 kg |
