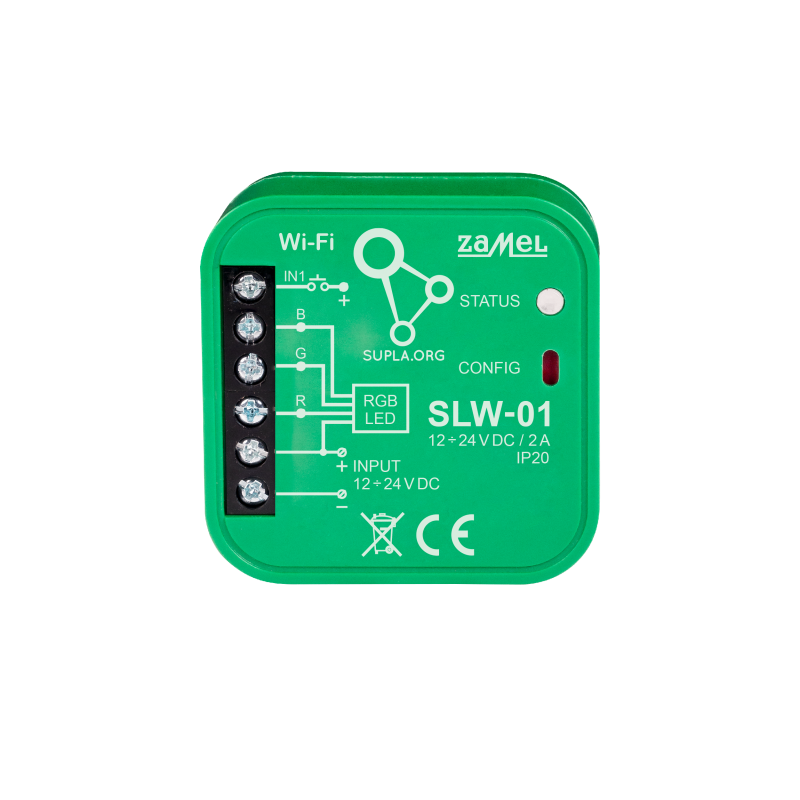

TYPE: SLW-01
RGB LED WI-FI CONTROLLER TYP: SLW-01
The SLW-01 module enables the control of RGB LED lighting using a smartphone or tablet. The SLW-01 plug-in modules are used both as elements for mounting in under and surface installation boxes, and as actuators mounted directly in the housing of lighting fixtures.
- With the SLW-01 device, you can comfortably control RGB lighting from your smartphone or switch it on and off with a simple wall switch.
- In the application, the device is shown as RGB lighting, which can be controlled with two sliders - one you choose the color and the other you adjust the brightness.
- SUPLA products have a developed community. You can share comments and ideas with other system users, you can search for support and inspiration in the community forum. Join thousands of satisfied users!
- Simple installation - if you have an RGB tape controller in your room, you can easily replace it with the SLW-01 device. You connect the RGB LED strip, hide it in a can and you can control it locally and remotely.
Technical data
| Mounting method | Montaż podtynkowy |
| Suitable for degree of protection (IP) | IP20 |
| Install method | Box 60 mm |
| Power supply | 12-24 V DC |
| Transmission | Wi-Fi 2.4GHz 802.11 b/g/n |
| Device depth | 20 mm |
| Weight | 0,04 kg |
| Number of output channels | 3 x Transresistor PWM |
| Number of output channels | 2 A / channel |
Commercial data
| Device hight | 47,5 mm |
| Device width | 47,5 mm |
Other data
| Transmission | Wi-Fi 2.4GHz 802.11 b/g/n |
| Height | 47,50 mm |
| Width | 47,50 mm |
| Depth | 20,00 mm |
| Weight | 0,040 kg |
| Range of mounting space | wifi range |
Documentation
Operating instructions
