TYPE: RNM-10

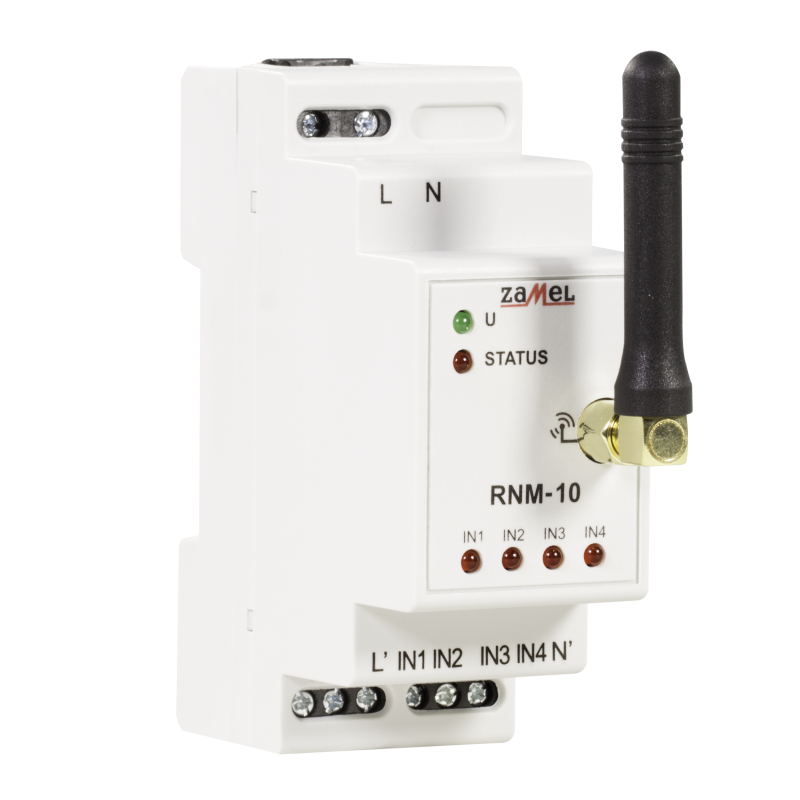

4-CHANNEL RADIO MODULAR TRANSMITTER TYPE: RNM-10
4-channel radio modular transmitter
RNM-10 cooperates with wireless EXTA
FREE system receivers. It is mounted on
a TH-35 rail. The device has 4 independent
inputs released by power supply voltage
230V~. Installation connectors, wired
EXTA home automation devices or other
relay devices (time programmers, motion
sensors, programmable relays, etc.) can be
connected to RNM-10 release terminals.
RNM-10 application allows to integrate the
above mentioned devices with EXTA FREE
system receivers and allows for wireless
control of these devices.
- easy installation and service,
- easy installation and service,
- integration with wired home automation systems,
- integration with wired home automation systems,
- energy-saving device, used to constant operation,
- energy-saving device, used to constant operation,
- possibility of independent control of four receivers,
- possibility of independent control of four receivers,
- cooperation with an unlimited number of EXTA FREE system receivers,
- cooperation with an unlimited number of EXTA FREE system receivers,
- connection possibility of antenna ANT-01 not mounted in a distribution board.
- connection possibility of antenna ANT-01 not mounted in a distribution board.
Technical data
| Current supply | 230 V AC |
| Number of commands | 4 |
| Degree of protection (IP) | IP20 |
| Power supply terminals | L, N, L’, N’ |
| Rated supply voltage | 230 V |
| Number of channels | 4 |
| Transmission | radio |
| Frequency transmission | 868, MHz |
| Transmission method | one-way |
| Maximum range in open area | 300 m |
| Optical signaling of the supply voltage | dioda LED zielona |
| Working temperature | DOD0851 °C |
| Power supply tolerance | -25 % |
| Rated supply voltage | 50/60 Hz |
| Rated supply voltage of the receiver | 0,35 W |
| Cross-section of connecting cables | 2,5 mm2 |
| Working position | free |
| Fixing the housing | rail TH 35 (PN-EN 60715) |
| Protection degree | IP20 |
| Impact voltage | 1 kV (PN-EN 61000-4-5) |
| length | 90 mm |
| width | 35 mm |
| height | 66 mm |
| Weight | 0,08 kg |
| Status indication of inputs | 4x LED red |
Commercial data
| Package width | 9,300 cm |
| Depth of package | 8,500 cm |
| Gross weight (product in packaging) | 0,200 kg |
