TYPE: ST-01

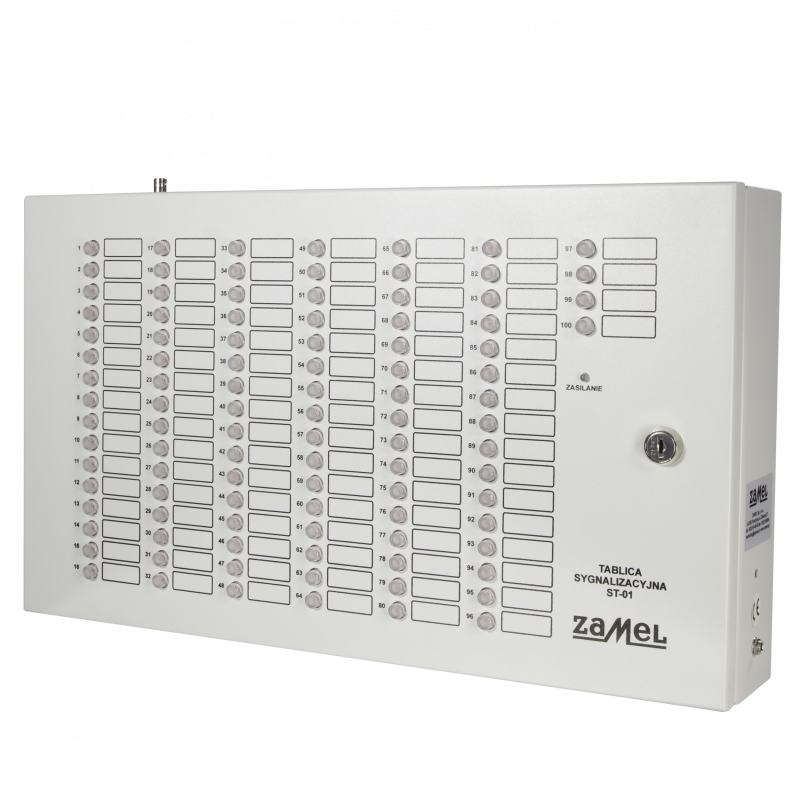

SIGNAL TABLE FOR 100 TRANSMITTERS TYPE: ST-01
The central point of the entire system is a signalling board capable of incorporating 36 or 100 transmitters. It is located in rooms of patient care personnel (nurses rooms, first-aid rooms, etc.). The board receives radio calls from remote controllers or transmitters located near patient’s beds. A received call is confirmed by acoustic and optic signalling. The device is powered with lowered voltage (using a 230/12VAC power adapter). Continuity of power supply is ensured by the use of built-in battery, which supplies the signalling board in case of mains power supply shortage.
- solid metal casing
- built-in 1,2V batteries
- basic element of wireless paging system etero
- possibility of freely add and remove transmitters
- emergency power supply - Built-in rechargeable battery
- simple operation, installation, commissioning and operation
Technical data
| Housing colour | Szary |
| Electricity consumption | 0,350 A |
| Lamp | LED |
| Type of optical signal | Światło pulsujące |
| Type of acoustic signal | Dźwięk pulsacyjny/ciągły |
| Protection class | III |
| Power supply included | Yes |
| Temperature range of operation | 0/35 °C |
| Encoding type | KEELOQ |
| Frequency | 433 MHz |
| Warranty | 24 miesiące |
| Operating range | 200 m |
| Supply voltage | 230,0 V |
| Protection degree | IP 20 |
