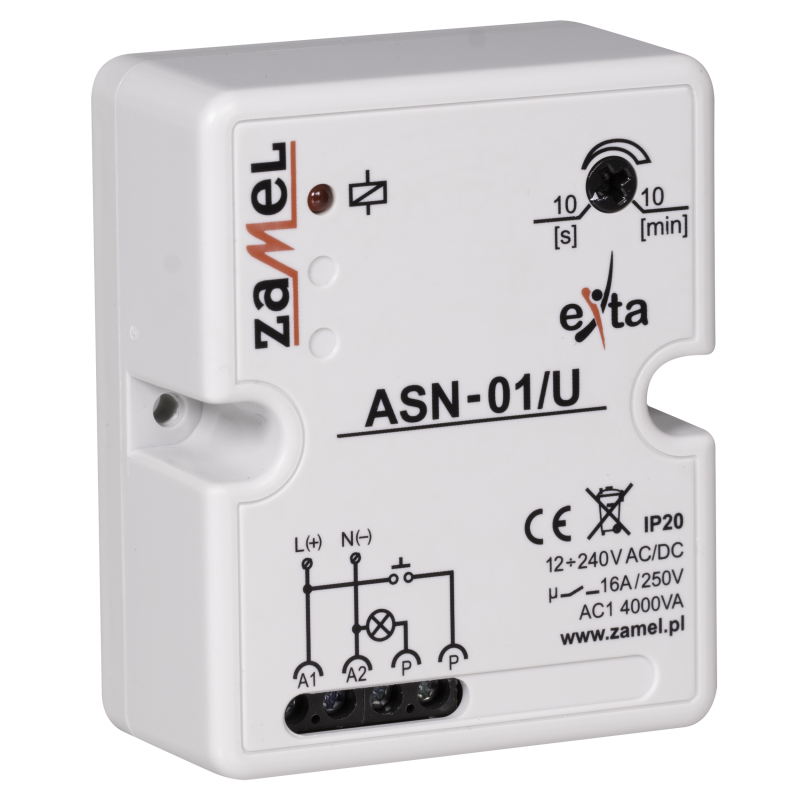

STAIRCASE TIME DELAY SWITCH 12-240V AC/DC TYPE: ASN-01/U
The staircase lighting time delay
switch ASN-01 is used to control lighting
devices on staircases and corridors. After
releasing the system it switches on the
lighting for the preset time by the user.
After that it switches off automatically.
The operating time can be adjusted from
10 sec to 10 min by means of the potentiometer
placed on the front panel of the
device. The staircase lighting time delay
switch ASN-01 can be used as standard
time delay relay. The surface mounting
enables flat surfaces mounting.
- doublemodule casing
- input rated indicator
- lighting time adjustment
- blanking time adjustment
- switch on time adjustment
- Intelligent lighting control
- lighting level adjustment in cases the pushbutton is blocked
Technical data
| Mounting method | Montaż natynkowy |
| Width in number of modular spacings | 0 |
| Wiring system | 3 i 4 przewodowa |
| Max. incandescent lamp load | 2000 W |
| Max. load fluorescent lamp | 500 VA |
| Max. load fluorescent lamp (Duo circuit) | 1000 VA |
| Max. load fluorescent lamp (parallel compensated) | 750 VA |
| Power supply terminals | A1, A2 |
| Rated supply voltage | 12-240 V |
| Rated temperature | -20/45 °C |
| Rated frequency | 50/60 Hz |
| Set time | smooth (rotary potentiometer) |
| Parameters of relay contacts | 16 A / 250 V AC1 4000 VA |
| Protection degree | IP20 |
| Overvoltage category | III |
| Width | 69 mm |
| Height | 56 mm |
| Depth | 27 mm |
| Weight | 76 g |
