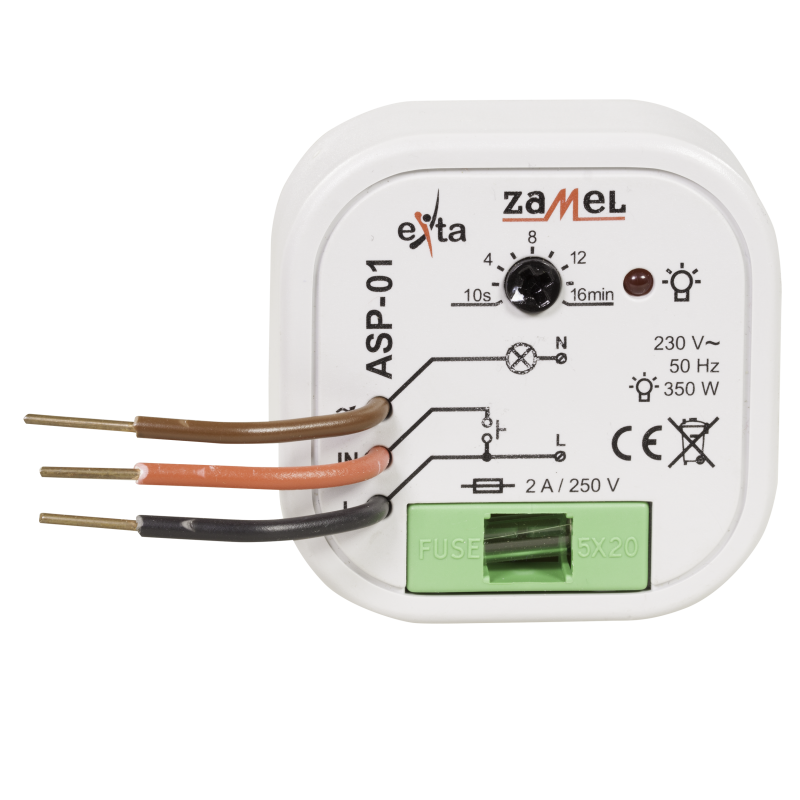

STAIRCASE TIME DELAY SWITCH 230V AC 15-300W TYPE: ASP-01
The ASP-01 staircase timer is designed
ASP - 01 for corridor and staircase lighting
control. After the circuit triggerring the timer
keeps the light ON for the preset time and
then switches it OFF. It has an adjustable
ON-time setting of 10 seconds to 16 minutes.
ON-time may be adjusted by means
of a potentiometer. The ASP-01 staircase
timer may by applied as a time relay for
delayed switch-OFF. It is possible to mount
the device under a push button, in a deep
junction box of 60 mm diameter.
- illuminated
- Relay voltage output
- Surface-mounted casing
- Staircase lighting control
- Counter-interlock function
- Relay state indicator red LED
- Applicable together with single pole push buttons
- Continuous on-time adjustment of 10 seconds to 14 minutes
- Either three-conductor or four-conductor wiring system possible
Technical data
| Mounting method | Montaż podtynkowy |
| Width in number of modular spacings | 0 |
| Wiring system | 3 przewodowa |
| Max. incandescent lamp load | 350 W |
| Max. load fluorescent lamp | 0 VA |
| Max. load fluorescent lamp (Duo circuit) | 0 VA |
| Max. load fluorescent lamp (parallel compensated) | 0 VA |
| Power supply terminals | L(black), brown - serial with receiver |
| Rated supply voltage | 230 V |
| Rated temperature | -20/45 °C |
| Rated frequency | 50/60 Hz |
| Time setting range t | 10 s ÷ 16 min |
| Protection degree | IP20 |
| Width | 50 mm |
| Height | 50 mm |
| Depth | 18 mm |
| Weight | 0,02 g |
| Load limit | 15 ÷ 350 W |
| Control element | triac |
