TYPE: VP-808B

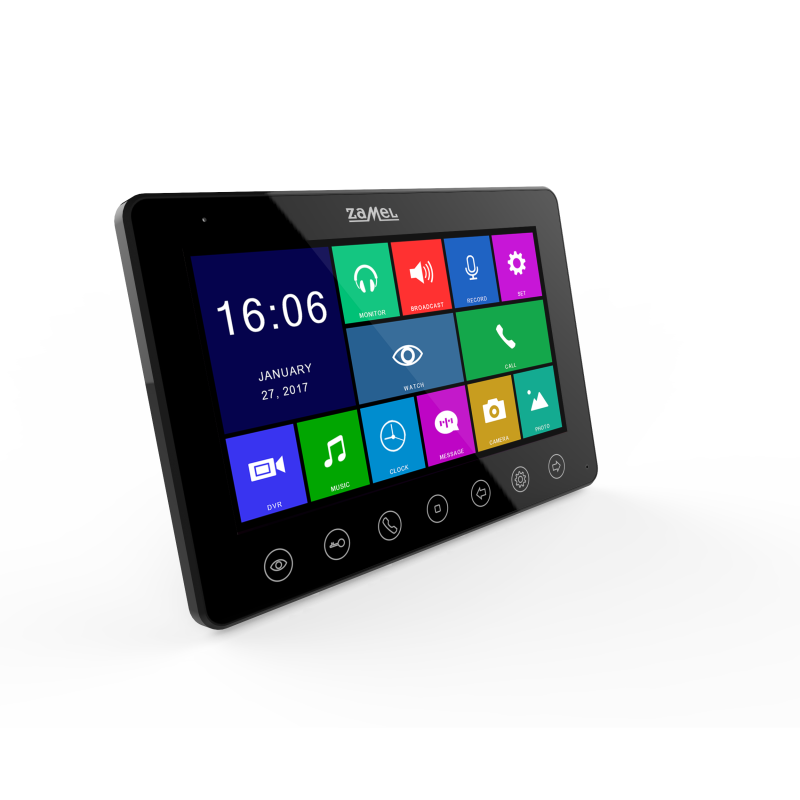

7 INCH VIDEOMONITOR WITH TOUCH BUTTONS BLACK TYP: VP-808B





The VP-800 series of video intercoms is an innovative
solution designed for the needs of single-family and two-family construction
The possibility of configuring the basic set
with external panels
and videomonitors available as part of the VP-800 series is undoubtedly the system advantage
Each basic set can be enriched with additional
external panels and monitors. This functionality is particularly
significant for buildings with a large area,
a and properties with several gates. Maximum
within the system can be grouped four any
monitors and any two external panels.
In addition, after connecting additional cameras
CCTV, the set can act as a recorder. • broadcast function
• control of gate and gate opening
• possibility of connecting two cctv cameras to one monitor
• possibility of connecting two external panels
• calendar
• clock with alarm
• function of electronic frame
• multimedia player
• possibility of saving about 90 x pictures to the built-in memory supporting cards with max. 32gb
• manual screenshots and video recordings from the door station
• function of leaving messages (voice recorder)
• automatic taking pictures from the door station after
calling
• motion detection and automatic recording of video
• the function of automatic answering or calling from any
image cctv on user request
• two-way communication audio
• high image resolution 800x480
• device without headphone with clear voice
• 10 levels of conversation volume
• 10 levels of brightness, contrast and color saturation
• 10 levels of melody
tuning • 13 polyphonic possibilities melodies for the microSD card
Technical data
Mounting method | Montaż natynkowy |
Colour | Czarny |
Width | 186 mm |
Height | 127 mm |
Depth | 15 mm |
Installation technique | Multi-wire system |
Talking unit without handset | Tak |
Mutable call tone | Tak |
Light-/door opener button | Tak |
Internal communication | Tak |
Volume control | Tak |
Switching functions | Tak |
Picture system | Colour |
Specific call tone | Tak |
Rated supply voltage | 15 V |
Power consumption during operation | 9 W |
The operating temperature of the video monitor | 0 / 40 °C |
Screen size | 7 DPI |
Resolution | 800x480 DPI |
Assembly | surface |
