TYPE: ROP-01

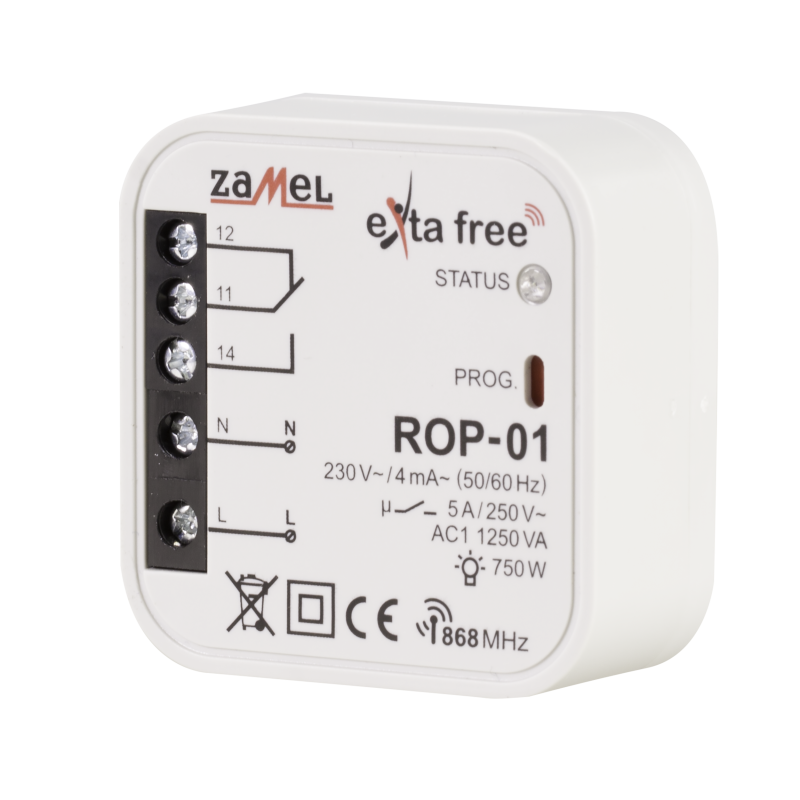

1⁠-⁠CHANNEL RADIO RECEIVER TYPE: ROP⁠-⁠01

Radio receivers are used both as elements in mounting in flush and surface installation cable boxes and as an actuator built directly in lighting fittings and other receivers. ROP-01 enables operation in 5 different modes (switching on, switching off, monostable mode, bistable mode, time mode.)

Where to buy? Product price list

operation is optically signalled,
wide operation range (up to 230 m),
1 NO/OC output relay (dry contacts),
lighting, heating operation control,
easy junction box Ø 60 mm installation,
low current consumption, possibility of constant operation,
cooperation with wireless EXTA FREE control system transmitters,
possibility of increasing operation range by means of RTN-01 retransmitter.
5 operation modes: switching on, switching off, monostable mode, bistable mode, time mode (switch off delay),

Zastosowanie

Technical data

Mounting method	Montaż podtynkowy
Number of relays	1
Number of commands	5
Suitable for degree of protection (IP)	IP20
Power supply terminals	L, N
Rated supply voltage	230 V
Number of channels	1
Transmission	radio
Frequency transmission	868, MHz
Transmission method	one-way
Optical signaling of operation	LED red
Working temperature	DOD0851 °C
Power supply tolerance	-25 %
Rated supply voltage	50/60 Hz
Number of operating modes	5
Maximum number of transmitters	32
Set time from	1 s
Parameters of relay contacts	1NO/NC 5A / 250V AC AC1 1250 VA

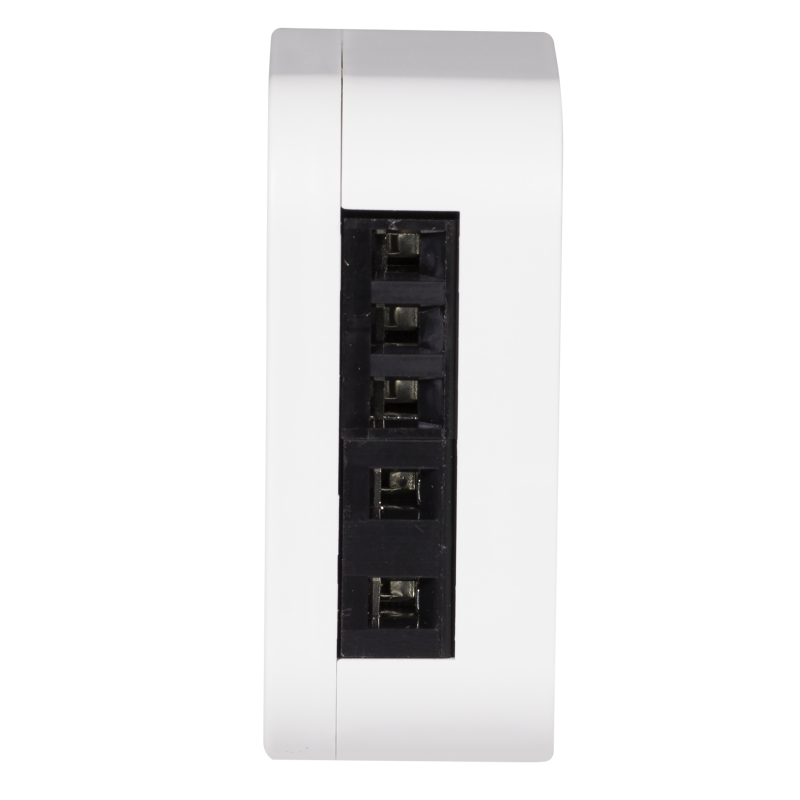

Number of terminals / connection wires	5
Cross-section of connecting cables	up to 2,5 mm2
Working position	free
Fixing the housing	installation box ?60 mm
Protection degree	IP20
Impact voltage	1 kV (PN-EN 61000-4-5)
length	47,5 mm
width	47,5 mm
height	20 mm
Weight	0,04 kg
Output relay terminals	12, 11, 14
