TYPE: ROM-10

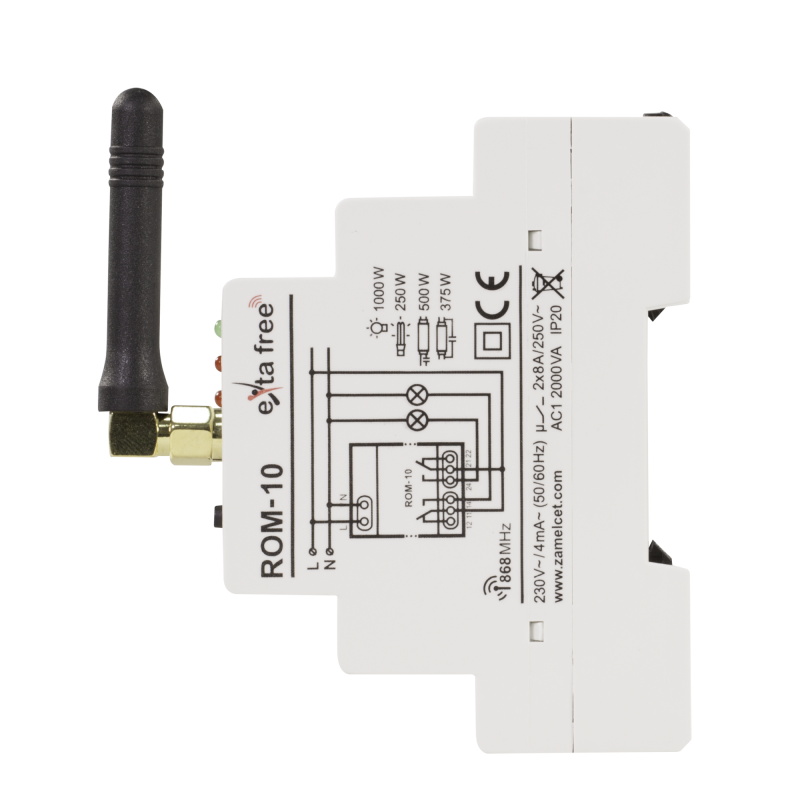

2⁠-⁠CHANNEL RADIO MODULAR RECEIVER TYPE: ROM⁠-⁠10

2-channel radio modular receiver ROM- 10 can be mounted in distribution boards on the TH-35 rail and can realise radio control functions using any of EXTA FREE system transmitters. Any electric system realising radio system functions can be connected to the device relay output (e.g. wired devices of EXTA home automation, relay-contactor systems and others).

Where to buy? Product price list

wide range of operation (up to 300 m),
two output relays 8A (changeover contacts),
cooperation with wireless EXTA FREE system transmitters,
power supply and relay operation are optically signalled,
2-channel radio receiver mounted on a TH-35 rail in a distribution board,
possibility of widening operation range by means of RTN-01 retransmitter.
integration possibility with wired control systems (e.g. exta home automation),
connection possibility of ANT-01 antenna mounted not in the distribution board,
five operation modes: switching on mode, switching off, monostable, bistable, time,

Technical data

Mounting method	Inne
Current supply	Inne
Number of relays	2
Number of commands	5
Suitable for degree of protection (IP)	IP20
Power supply terminals	L, N
Rated supply voltage	230 V
Number of channels	2
Transmission	radio
Frequency transmission	868, MHz
Transmission method	one-way
Maximum range in open area	300 m
Optical signaling of the supply voltage	dioda LED zielona
Working temperature	DOD0851 °C
Power supply tolerance	-25 %
Rated supply voltage	50/60 Hz
Rated supply voltage of the receiver	0,55 W
Number of operating modes	5
Maximum number of transmitters	32
Set time from	1 s
Parameters of relay contacts	2NO/NC 8A / 250V AC AC1 2000 VA
Cross-section of connecting cables	up to 2,5 mm2
Working position	free
Fixing the housing	rail TH 35 (PN-EN 60715)
Protection degree	IP20
Impact voltage	1 kV (PN-EN 61000-4-5)
length	90 mm
width	35 mm
height	66 mm
Weight	0,08 kg
Output relay terminals	12, 11, 14, 24, 21, 22
