TYPE: ROP-02

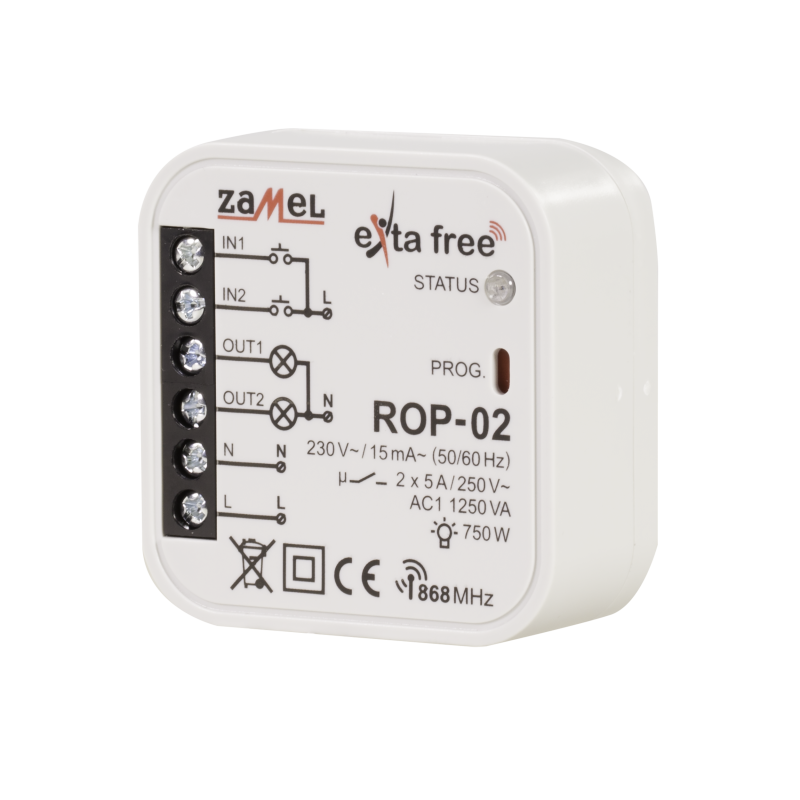

2⁠-⁠CHANNEL RADIO RECEIVER TYPE: ROP⁠-⁠02

Radio receivers are used both as elements in mounting in flush and surface installation cable boxes and as an actuator built directly in lighting fittings and other receivers. ROP-02 enables operation in 5 different modes (switching on, switching off, monostable mode, bistable mode, time mode).

Where to buy? Product price list

operation is optically signalled,
wide operation range (up to 230 m),
easy junction box Ø 60 mm installation,
lighting, heating etc. operation control,
2 output relays (voltage contacts 230 V AC),
low current consumption, possibility of constant operation,
cooperation with wireless EXTA FREE control system transmitters,
possibility of increasing operation range by means of RTN-01 retransmitter.
5 operation modes: switching on, switching off, monostable mode, bistable mode, time mode (switch off delay),

Zastosowanie

Technical data

Mounting method	Montaż podtynkowy
Current supply	230 V AC
Number of relays	2
Number of commands	5
Suitable for degree of protection (IP)	IP20
Power supply terminals	L, N
Rated supply voltage	230 V
Number of channels	2
Transmission	radio
Frequency transmission	868, MHz
Transmission method	one-way
Maximum range in open area	250 m
Optical signaling of operation	LED red
Working temperature	DOD0851 °C
Power supply tolerance	-25 %
Rated supply voltage	50/60 Hz
Rated supply voltage of the receiver	0,39 W
Number of operating modes	5
Maximum number of transmitters	32
Set time from	1 s
Parameters of relay contacts	2NO 5A / 250V AC AC1 1250 VA (potential contacts)
Number of terminals / connection wires	6
Cross-section of connecting cables	up to 2,5 mm2
Working position	free
Fixing the housing	installation box ?60 mm
Protection degree	IP20
Impact voltage	1 kV (PN-EN 61000-4-5)
length	47,5 mm
width	47,5 mm
height	20 mm
Weight	0,03 kg
Receiver power supply terminals	OUT1, OUT2 - voltage outputs
External triggering clamps	IN1, IN2
