TYPE: SRP-03

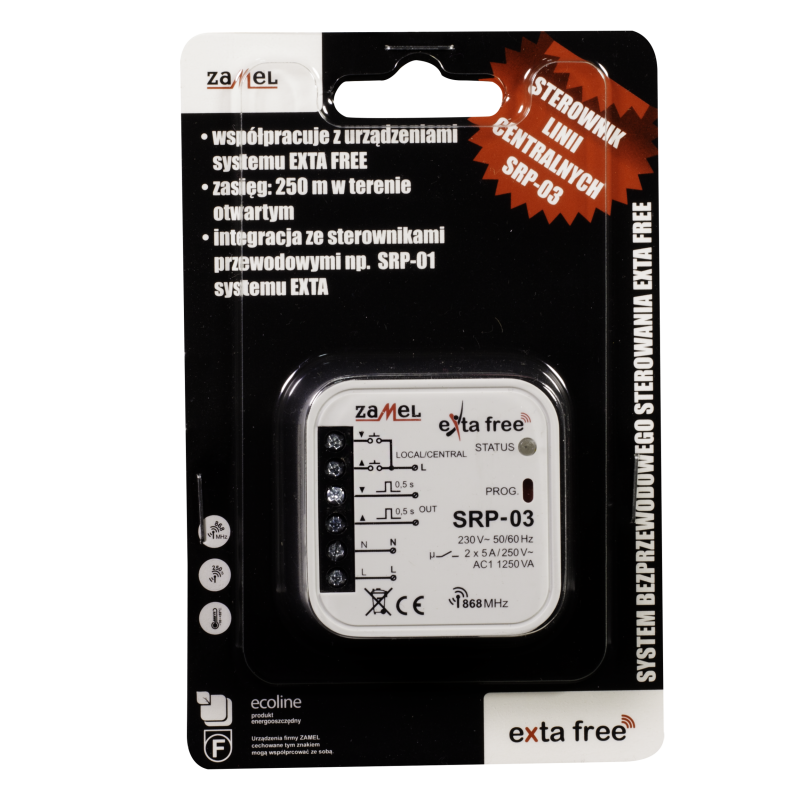

CENTRAL RADIO ROLLER BLINDS CONTROLLER TYPE: SRP-03
Radio roller blinds controller SRP-03 is
used to realise central control function of
roller blind drives. The device generates
central control impulses (full opening or
closing of a single roller blind or a group
of roller blinds, the impulse is 0,5 second
long). SRP-03 device can be used as an
element of wireless (EXTA FREE system
transmitters) or wired (roller blind switches)
central control - which allows for integration
of wired roller blinds switches
(SRM-10, SRP-01 or devices of different
manufacturers) with wireless EXTA FREE
control system.
- inputs of wired roller blind central control,
- energy-saving device, possibility of constant work,
- integration with wired roller blind switches SRM-10 and SRP-01 or devices of different manufacturers,
- possibility of cooperation with any roller blind switch (which is not equipped in backlight elements),
- used in wired and wireless central (group) control of roller blind, sunblind and gate drives, (electric motors of 230V AC),
Technical data
| Mounting method | Montaż podtynkowy |
| Current supply | Inne |
| Number of relays | 2 |
| Number of commands | 2 |
| Suitable for degree of protection (IP) | IP20 |
| Power supply terminals | L, N |
| Rated supply voltage | 230 V |
| Number of channels | 2 |
| Transmission | radio |
| Frequency transmission | 868, MHz |
| Transmission method | one-way |
| Maximum range in open area | 250 m |
| Optical signaling of operation | LED red |
| Working temperature | DOD0851 °C |
| Power supply tolerance | -25 % |
| Rated supply voltage | 50/60 Hz |
| Rated supply voltage of the receiver | 0,4 W tryb „standby” / 0,7 moving roller blind W |
| Maximum number of transmitters | 32 |
| Parameters of relay contacts | 2NO 5A / 250V AC AC1 1250 VA (potential contacts) |
| Number of connection terminals / cables | 6 |
| Cross section of the connection cables of the receiver | 0,2 ÷ 2,50 mm2 |
| Working position | free |
| Fixing the housing | installation box ?60 mm |
| Protection degree | IP20 |
| Impact voltage | 1 kV (PN-EN 61000-4-5) |
| length | 47,5 mm |
| width | 47,5 mm |
| height | 20 mm |
| Weight | 0,03 kg |
| Output relay terminals | OUT ?(up), ?(down) - central control outputs |
| Control terminals | LOCAL/CENTRAL (up), (down) |
Commercial data
| Package width | 9,200 cm |
| Depth of package | 13,900 cm |
| Gross weight (product in packaging) | 0,110 kg |
