TYPE: SRP-02

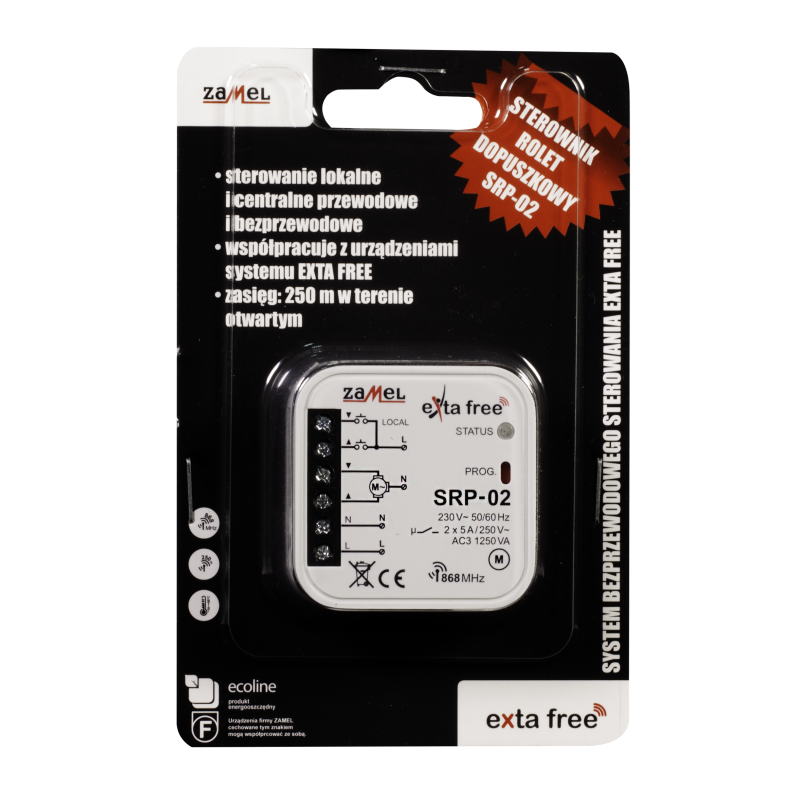

RADIO ROLLER BLINDS CONTROLLER TYPE: SRP⁠-⁠02

Radio roller blinds controller SRP-02 is used to control roller blind drives with 230V AC motor with a limit switch. The device realises roller blinds local and central control functions and it has the possibility of comfort mode adjustment. Comfort modes are used to adjust roller blinds position (height level) and to memorise the height level. Central mode is used in case of a totally closed or opened roller blind or a group of roller blinds with different position level.

Where to buy? Product price list

wired local control inputs,
easily installed in Ø60 mm junction box,
energy-saving device, possibility of constant work,
possibility of cooperation with any roller blind switch (which is not equipped in backlight elements),
used in wired and wireless control of roller blind, sunblind and gate drives, (electric motors of 230 V AC),
two comfort modes - upper and bottom - memory of roller blind height level (e.g. roller blind open at a half height level),

Zastosowanie

Technical data

Mounting method	Montaż podtynkowy
Number of relays	2
Number of commands	5
Suitable for degree of protection (IP)	IP20
Power supply terminals	L, N
Rated supply voltage	230 V
Number of channels	2
Transmission	radio
Frequency transmission	868, MHz
Transmission method	one-way
Maximum range in open area	250 m
Optical signaling of operation	LED red
Working temperature	DOD0851 °C
Power supply tolerance	-25 %
Rated supply voltage	50/60 Hz
Rated supply voltage of the receiver	0,4 W tryb „standby” / 0,7 moving roller blind W
Maximum number of transmitters	32
Set time from	1 s
Parameters of relay contacts	2NO 5A / 250V AC AC1 1250 VA (potential contacts)

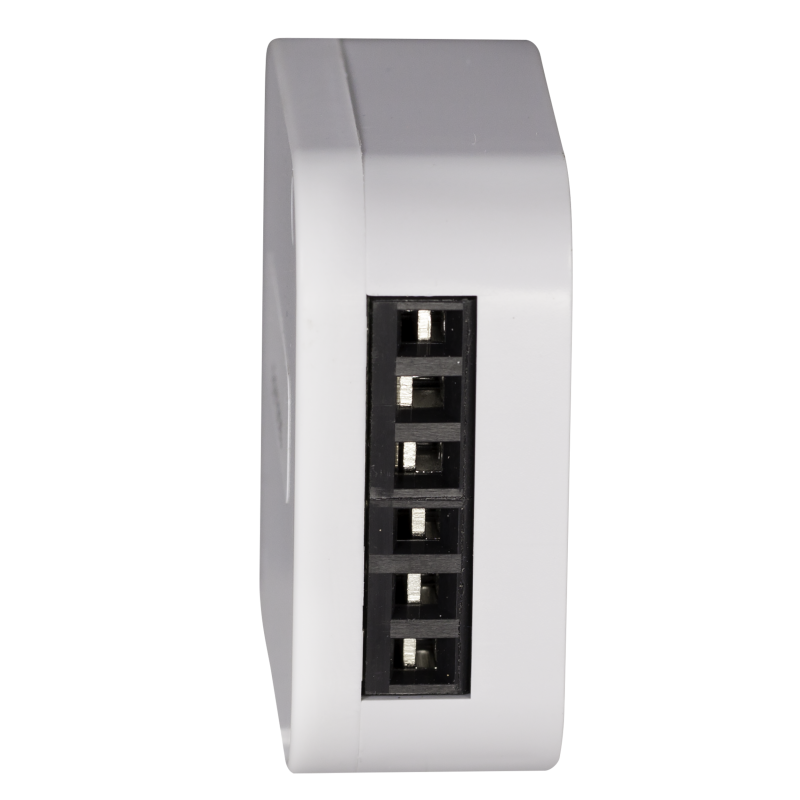

Number of connection terminals / cables	6
Cross section of the connection cables of the receiver	0,2 ÷ 2,50 mm2
Working position	free
Fixing the housing	installation box ?60 mm
Protection degree	IP20
Impact voltage	1 kV (PN-EN 61000-4-5)
length	47,5 mm
width	47,5 mm
height	20 mm
Weight	0,03 kg
Maximum shutter motion time	120
